Selecting Time Series: The Time Series Search

In particular, if you have not yet created and saved any time series selections, you usually start with the normal time series selection:

Searching/Selecting Time Series

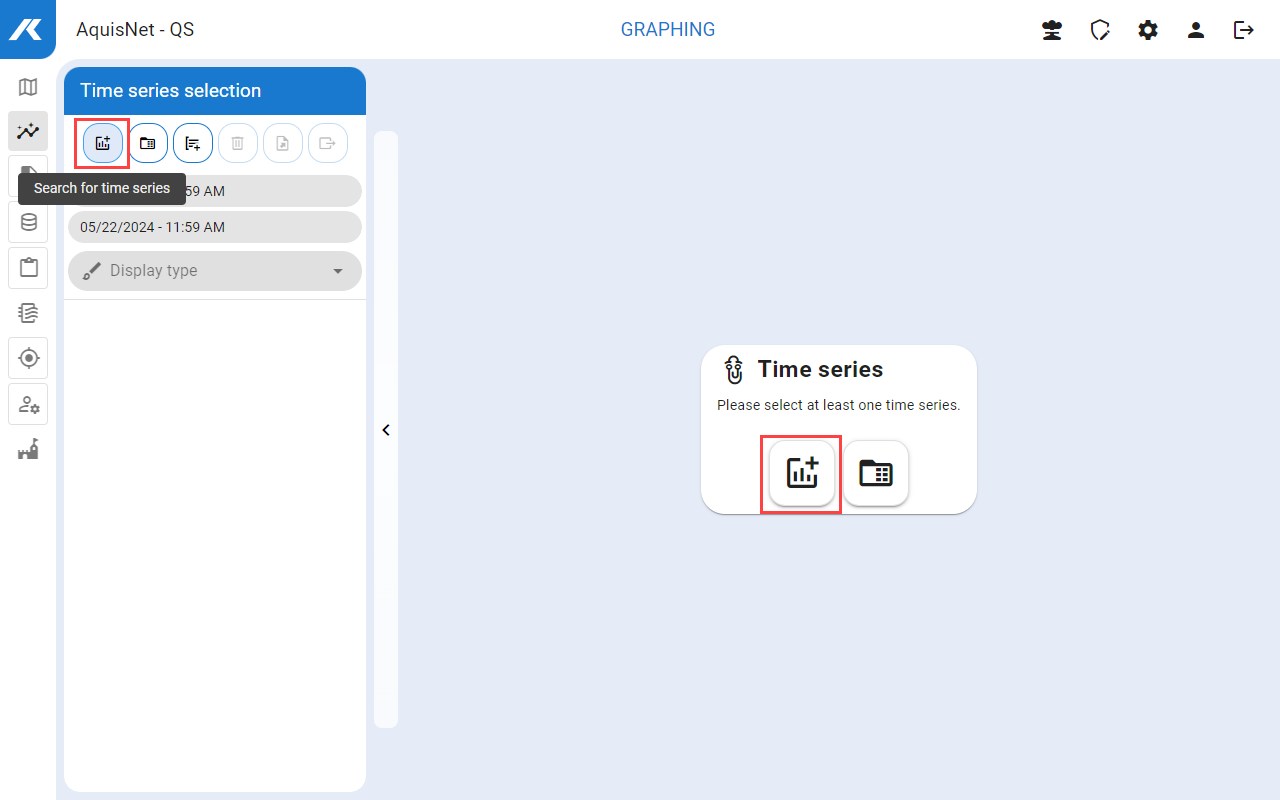

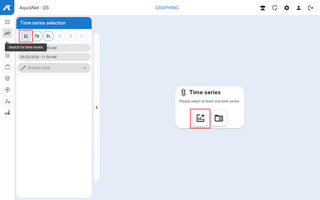

▪Click the icon in the left-hand bar for the time series selection or on the right-hand side in the window.

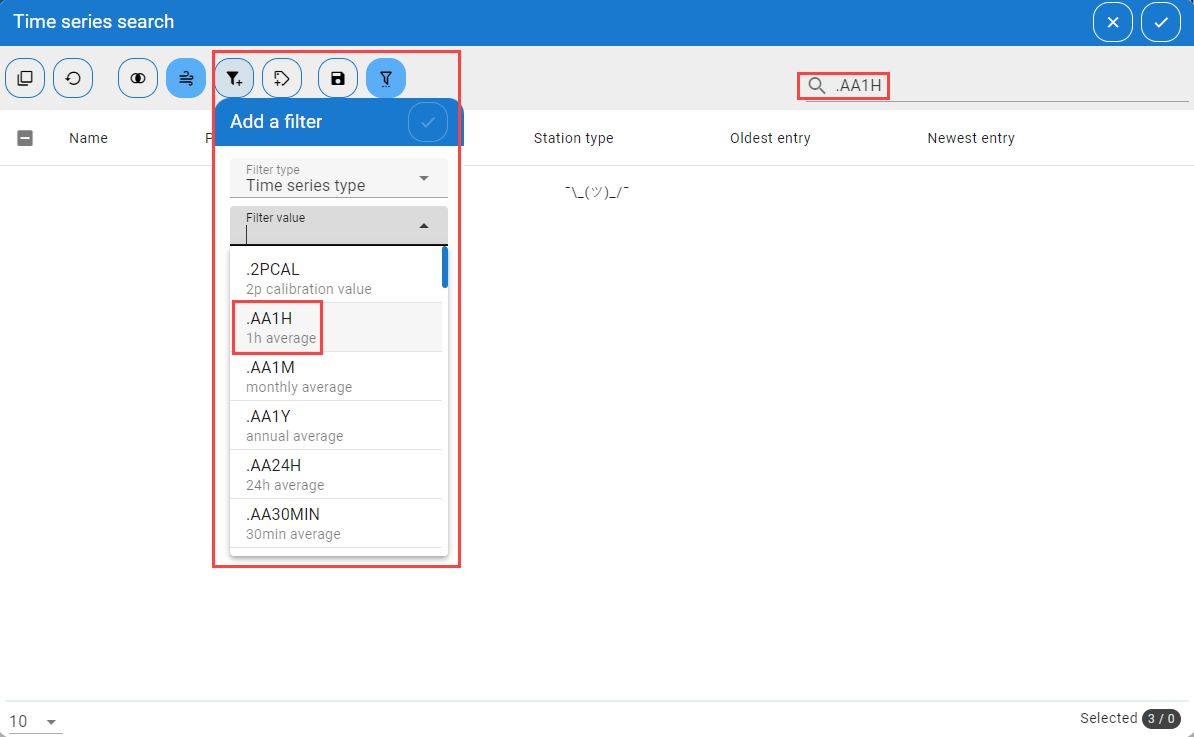

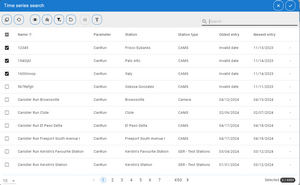

The search dialog opens.

In this dialog you have the following working possibilities:

Element	Description
	Reset selection. The time series currently selected using the check box are switched off again; no more time series are then selected.
	Reset all. All set selection criteria including filters, tags, etc. are reset. The time series selection can be started again.
	Switch back and forth between AND and OR link of the selection conditions/filter criteria. Several filter criteria are linked by AND: all conditions must be fulfilled. Several filter criteria are linked by OR: Time series are found that fulfil at least one of the conditions. After clicking, the icon and the tooltip change accordingly.

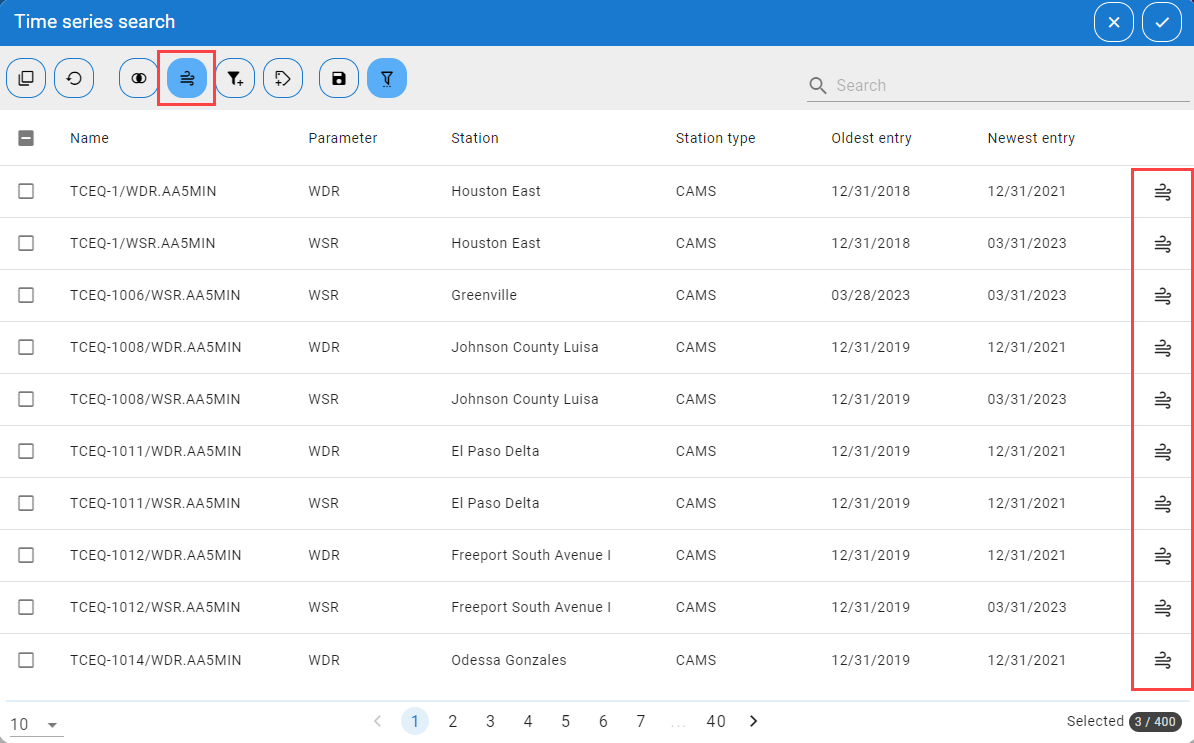

	Only show wind time series. Wind time series can be recognised by the icon in the last column.
	Add time series filter. Only select time series that belong to certain station types, stations, parameters (parameters) or time series types. Follow the links for details.
	Select tag (identifier). Use this to filter for time series for which certain tags have been assigned.

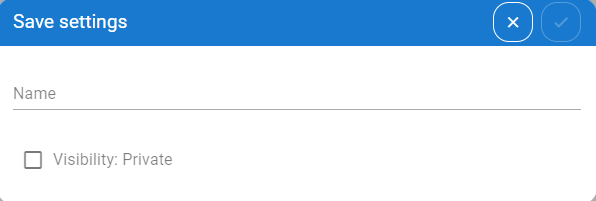

	Save the currently set filter conditions. Assign a name for the current filter conditions and set whether the search is private (only accessible to you) or public (visible to all users).

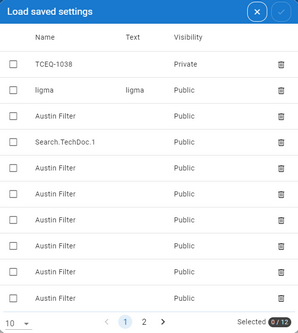

	Load saved settings. The dialog displayed shows the filter name and any defined search string from the search box. Select the desired search. The criteria are loaded automatically. Note: Searches saved as public can be selected here by all users. Private searches are only visible to you. In this dialog, you can also delete filter conditions saved with .
Search box (right)	Search for specific time series using their name or the name of the parameter. Note: The search box on the right allows you to search for time series that can also be searched for using the time series filter.

▪In the first column, check the boxes of the time series you want to continue working with.

▪Confirm your selection with .

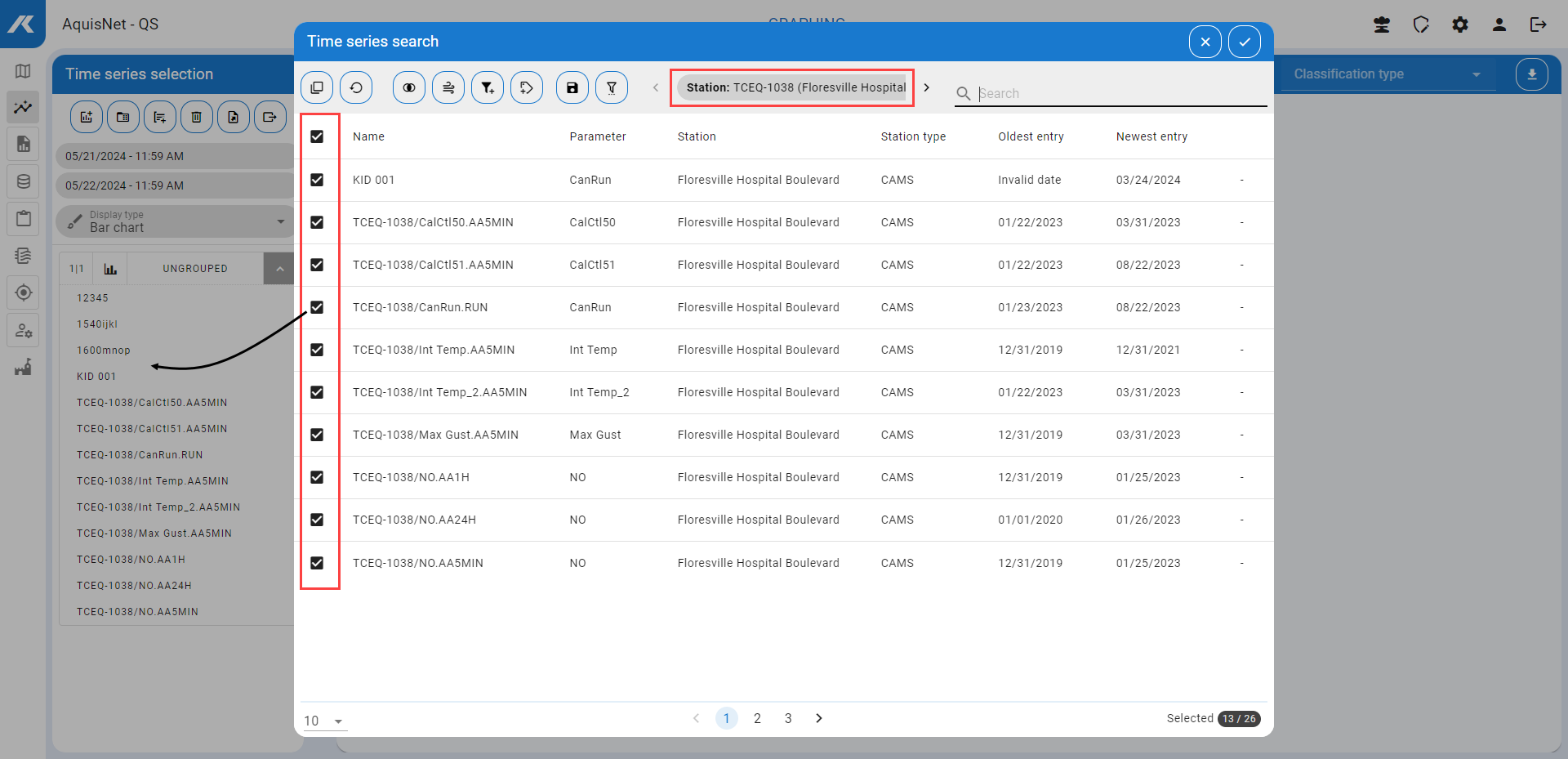

The selected time series will be displayed in the time series list. The list also shows the currently set time range for which time series data is displayed and analysed (default setting: current day).

▪The different selection and search options displayed above can also be repeated.

The time series you have already selected remain in the list or are reset when you open the search dialog again (boxes are checked).

▪The selected time series can now be displayed. Various display types are available for this.

▪You can delete individual time series from the time series list by moving the mouse over the time series entry and clicking the icon.

Note: All the time series selection criteria explained here can be used additively or alternatively by switching between AND/OR conditions.

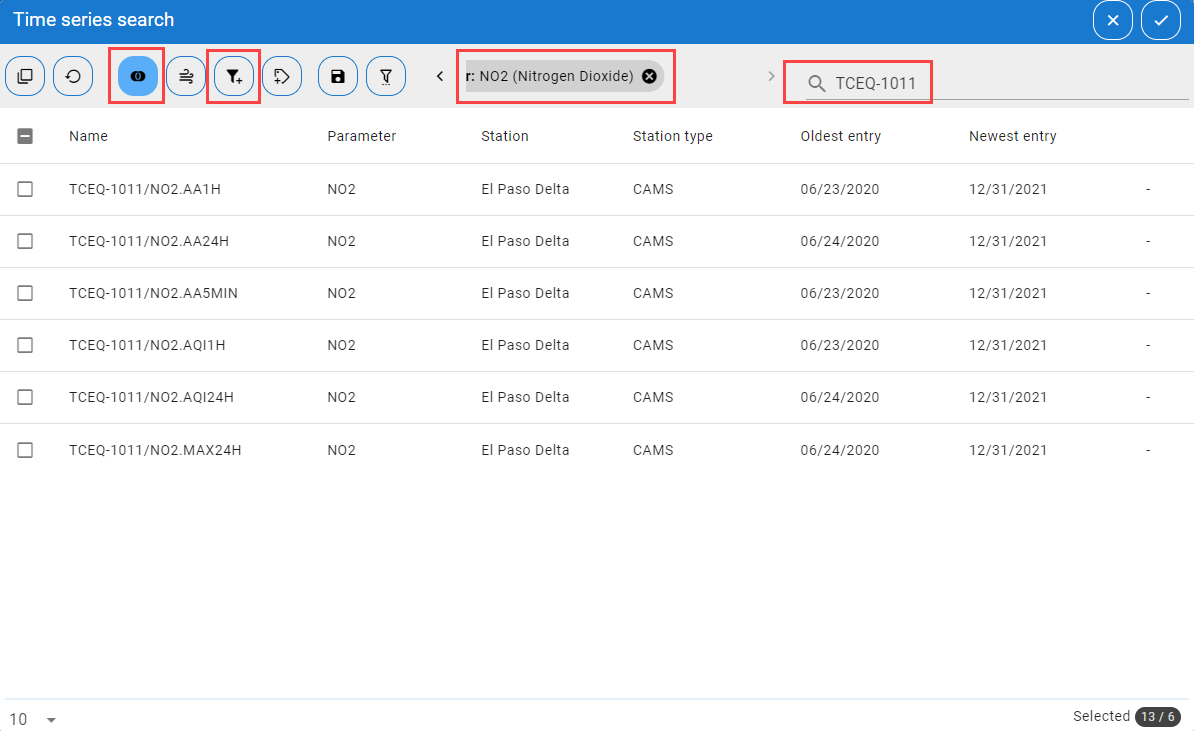

Below is an example of a search for time series that also belong to the NO2 parameter and have a specific station name (here: TCEQ-1011).

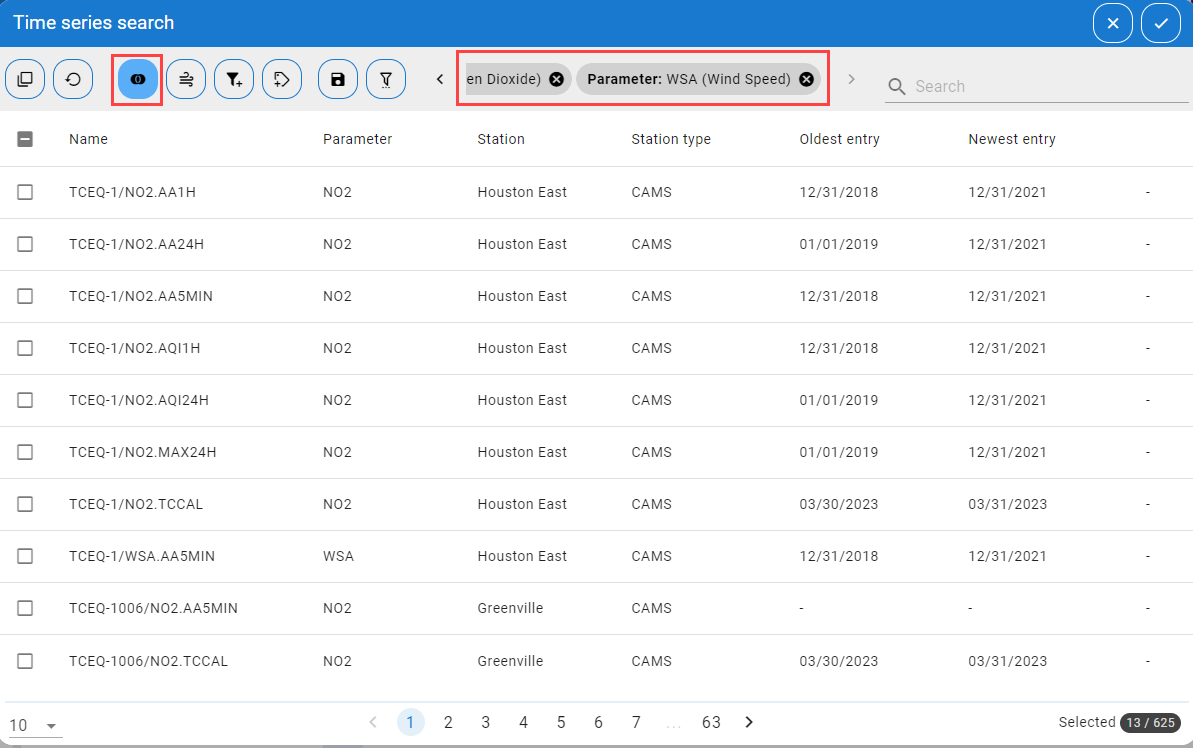

For example, if you are looking for time series of two or more parameters at the same time, specify the parameters using the time series filter and link the conditions with OR.

Deleting Time Series From the Group

You can also select time series for further processing and evaluation using time series groups. This is an alternative to the selection by individual time series.

Note:

Click the icon in the left-hand bar for the time series selection or on the right-hand side in the window.

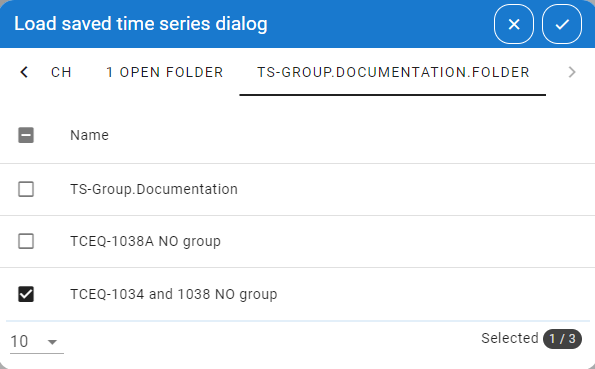

▪Select the desired folder at the top.

▪Then check the boxes of the time series groups for which you want to load time series.

▪Confirm your selection with .

The time series of the selected group are loaded.

▪Repeat this process for each additional time series group for which you want to load time series.

▪Use the icon to remove all defined time series groups from the time series selection.

▪You can also delete individual time series from the time series list of the group by moving the mouse over the time series entry under the group and clicking the icon.

Note:

▪If you have removed the last time series of a group from the time series selection, the time series group is also removed from the selection.

▪Ch. Time series groups contains the detailed description of the group functionality.

Creating a New Time Series Group

You can save your current time series selection as a new time series group, either only for the current working session or permanently.

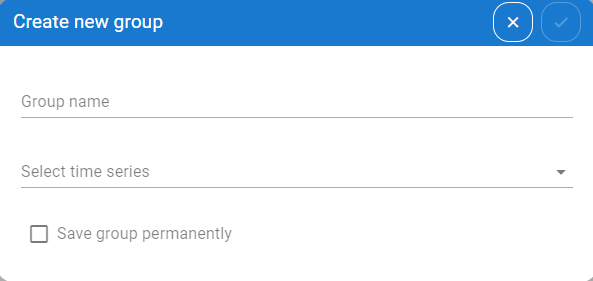

▪Click the icon in the time series selection bar.

▪Enter a name for the new time series group.

▪Select the desired time series.

▪Check the boxes of the time series designated for the group in the list of selected time series.

▪Check the Save group permanently box if you want to continue using the new time series group and therefore save it permanently in the database.

▪Select the folder in which the new time series group is to be saved.

Ch. Time series groups contains the detailed description of the group functionality.

▪Save the new group with .

The group can then be selected again to load time series.

Documented software version: 1.0.0
