Calibration Configuration

Scroll

You can create calibrations with their thresholds and define your own calibration sequences for your measuring devices.

Calibrations

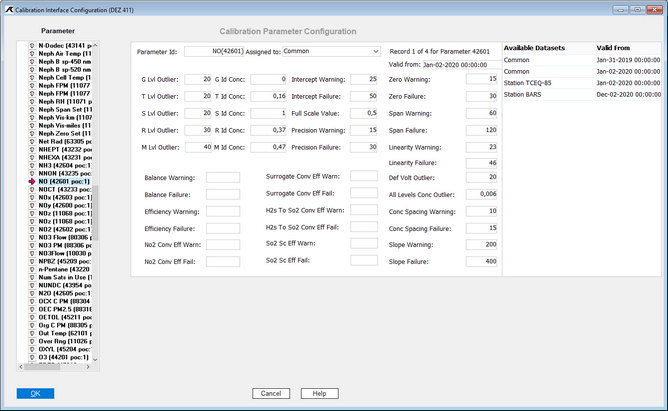

To configure calibrations and their settings, proceed like this:

▪Start Calibrations from the Import > Interface main menu.

▪Select the parameter for which you want to specify calibration settings in the list on the left.

▪Add a new set of calibration settings with the context menu item Add.

▪Specify the following settings:

Element	Description
Parameter	Here the selected parameter for which settings are configured is displayed.
Assigned to	Select a station if you want to configure calibrations for single stations or single station groups. If left empty, the calibration settings are valid for all stations where the parameter is measured. This is indicated by Common.
Valid From	Specify the start of validity for the current configuration.
Available Datasets/Valid From	You can configure calibrations for different time ranges and with different values. New configuration sets are automatically added to this list with all existing configurations. You can identify Common settings or settings for single stations or station groups. Click en entry to load the respective settings into the dialog.
G/T/S/R/M Lvl Outlier	Calibration values for level outliers. Separated by levels G, T,S, R, M.
G/T/S/R/M ID Conc	Calibration values for concentration.
Intercept Warning	Calibration value for the intercept deviation to trigger a warning.
Intercept Failure	Calibration value for the intercept deviation to trigger a message of failure.
Full Scale Value	Calibration value for
Precision Warning	Calibration value for
Precision Failure	Calibration value for
Balance Warning	Calibration value for
Balance Failure	Calibration value for
Efficiency Warning	Calibration value for
Efficiency Failure	Calibration value for
No2/Surrogate/H2s to SO2/So2 Sc/ Conv Eff Warn	Calibration value for
No2/Surrogate/H2s to SO2/So2 Sc/ Conv Eff Fail	Calibration value for
Zero Warning	Calibration value for
Zero Failure	Calibration value for
Span Warning	Calibration value for
Span Failure	Calibration value for
Linearity Warning	Calibration value for
Linearity Failure	Calibration value for
Def Volt Outlier	Calibration value for
All Levels Conc Outlier	Calibration value for
Conc Spacing Warning	Calibration value for
Conc Spacing Failure	Calibration value for
Slope Warning	Calibration value for
Slope Failure	Calibration value for

Calibration Sequences

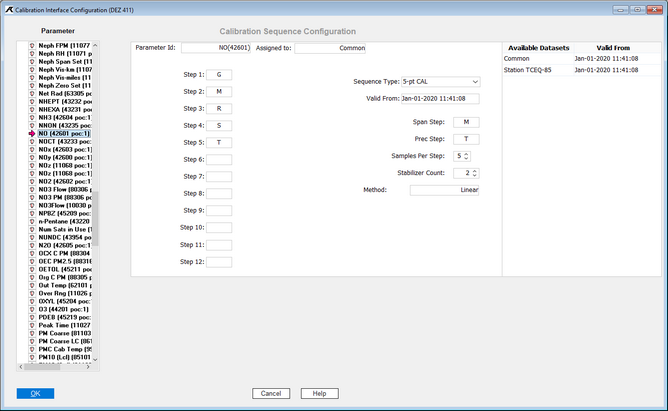

To configure user-defined calibration sequences (up to 12 at the moment), proceed like this:

▪Start Calibrations Sequences Settings from the Import > Interface main menu.

▪Select the parameter for which you want to specify a calibration sequence in the list on the left.

▪Add a new user-defined calibration sequence with the context menu item Add.

▪Specify the following settings:

Element	Description
Step1 through 12	Specify the sequence of the calibration. Separated by levels G, T,S, R, M.
Sequence Type	Select the type of calibration sequence (e.g. a 5-point calibration). Here, also an enhanced calibration type can be selected.
Valid From	Specify the start of validity for the current configuration.
Available Datasets/Valid From	You can configure calibration sequences for different time ranges and with different values. New configuration sets are automatically added to this list with all existing configurations. You can identify Common settings or settings for single stations or station groups. Click en entry to load the respective settings into the dialog.
Span Step	Specify the step by levels G, T,S, R, M to be used to calibrate the span of calibration.
Prec Step	Specify the step for calculation of the precision.
Samples Per Step	Specify the maximum number of samples to be used for each calibration sequence step. Example: If set to 5, each step of the calibration will examine 5 samples to get the calibration values.
Stabilizer Count	Specify the number of samples that are not taken into account when calibrating since the serve during startup for stabilization of the calibration conditions.
Method	If Sequence Type is set to enhanced, you can select a method (single or dual linear or square/cubic polynoms) to define the calibration equation differently from linear with slope, etc.
