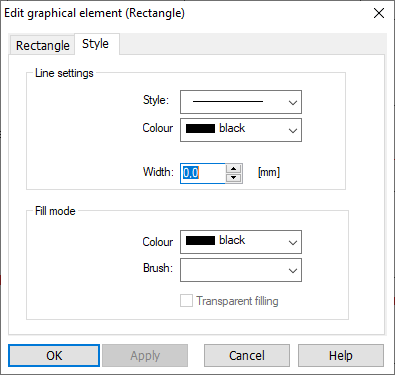

The second tab page Style in the [Name of graphical element] edit form (not existing for Free Comment) shows the properties of pen (section Line style) and brush (section Fill mode) of line and area (rectangles, ellipses) graphical elements. Only graphical elements with a closed area have brush properties whose fill colour and pattern can be defined (i.e. not for curves/lines).

▪Specify the line style:

▪The drop-down list box Line style offers you a selection of various line types.

▪Select the line colour from the drop-down list.

▪Enter the line width in millimeters either manually or choose the width by means of the arrow keys.

▪Specify the fill mode:

▪Choose a fill colour from the drop-down list.

▪Choose from the drop-down list box Fill pattern the desired pattern. If the area is completely filled with a colour or if it remains white, the check box Transparent filling is deactivated.

▪When checking this box, the filling becomes transparent.
