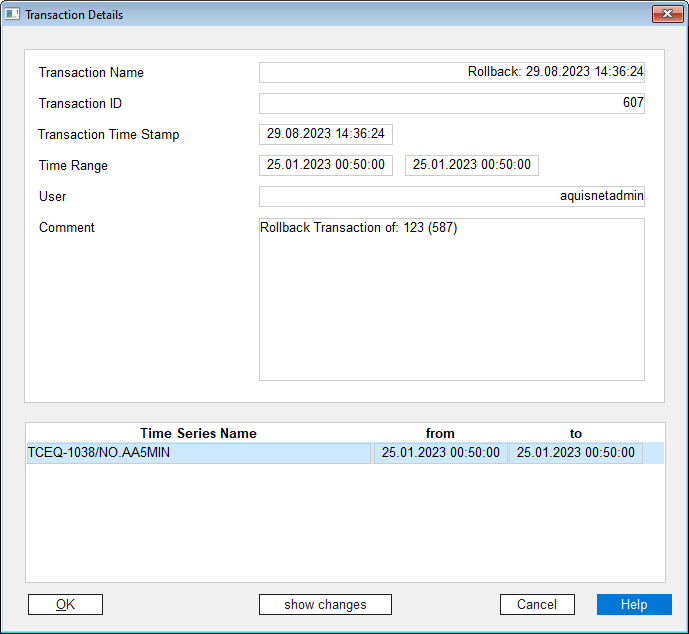

With the View transaction properties function of the Details context menu, you open details of the present transaction. They are displayed in a new window:

▪Transaction name

▪Transaction ID

▪Transaction time stamp

▪Time range stored time range

▪User who executed the transaction

▪Description of the executed transaction

▪List of all affected time series with time series name (left column) and time range of data changes (right column).

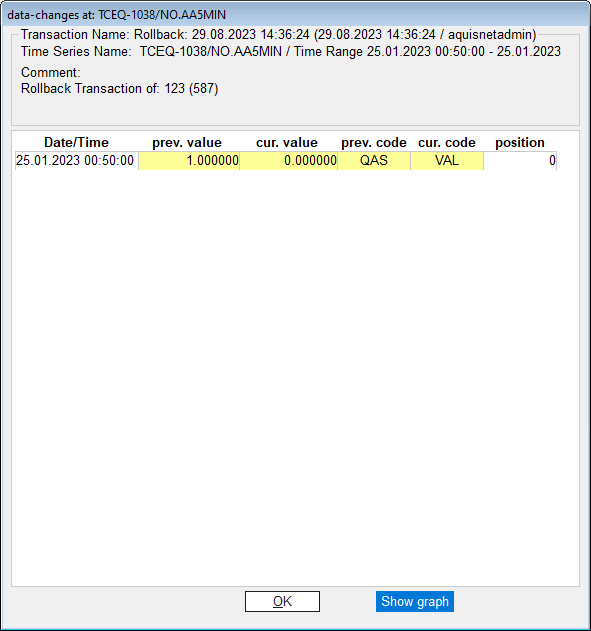

After selecting a time series in the list above, you can display the changes in the following dialog:

In addition to the transaction data, you can see the data states of the individual measured values before and after the transaction.

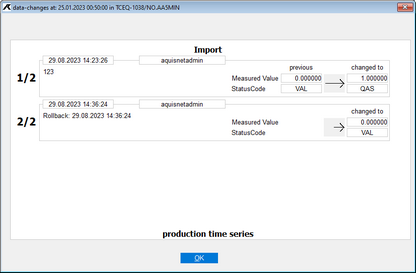

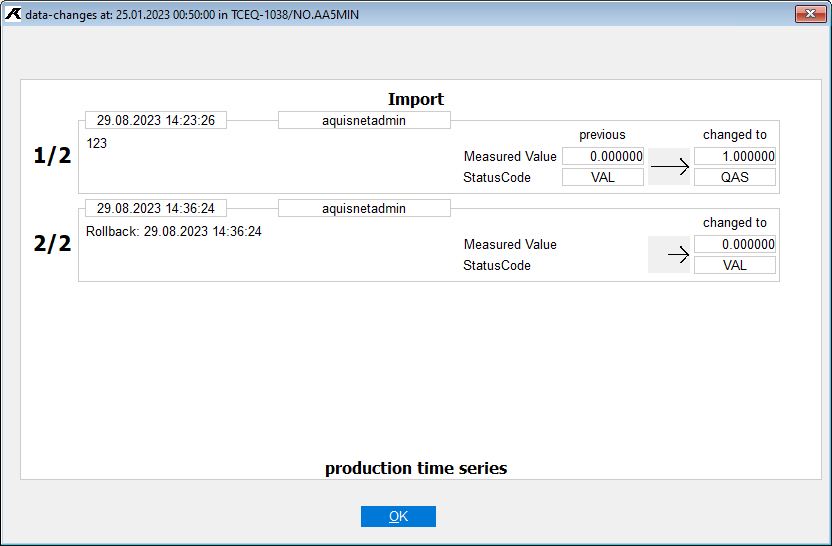

Double-clicking on one of these rows opens the transaction details for the selected measured value and thus an overview of all transactions and states relating to this measured value:

Here you can now see all transactions with their name, time of execution, user and the values before and after the transactions that have made changes to the selected value.

Double-clicking on one of the displayed transactions then opens the transaction detail display (see above).
