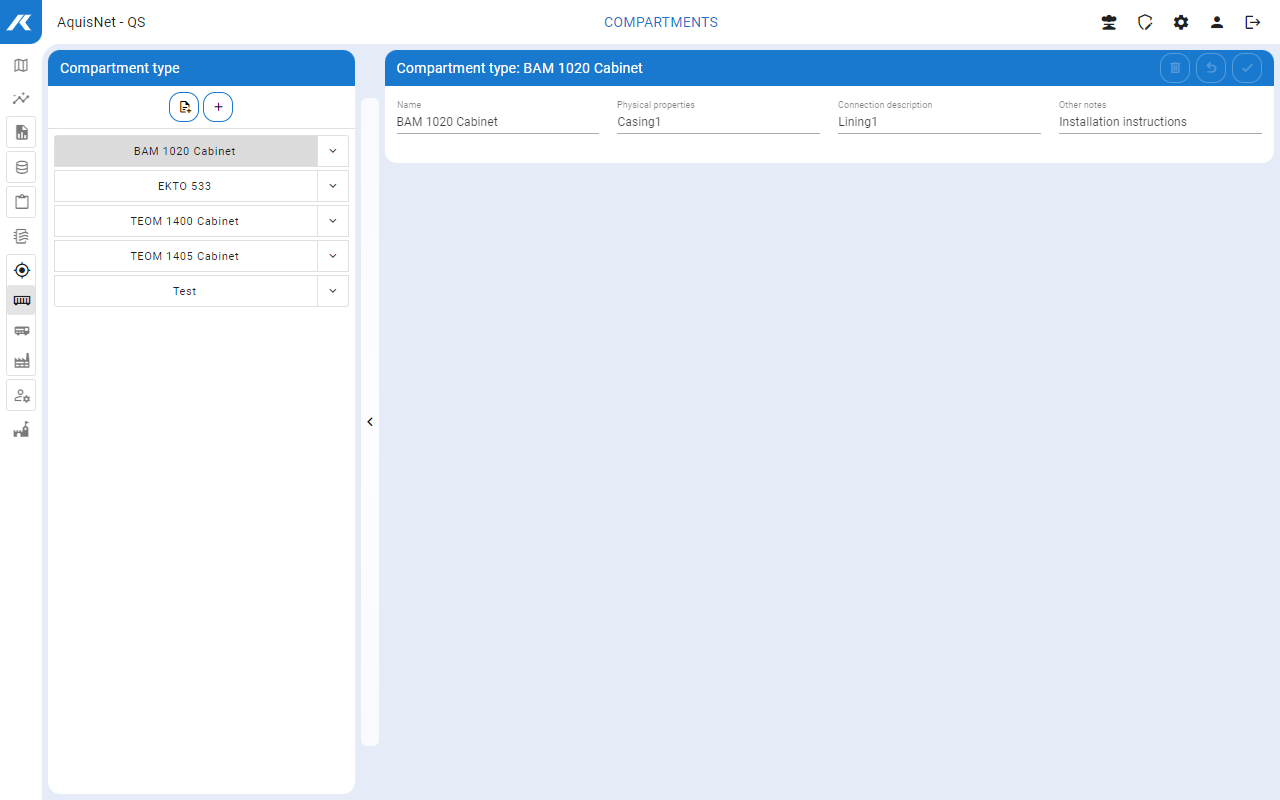

▪Click the icon in the left-hand bar with the compartment types and compartments.

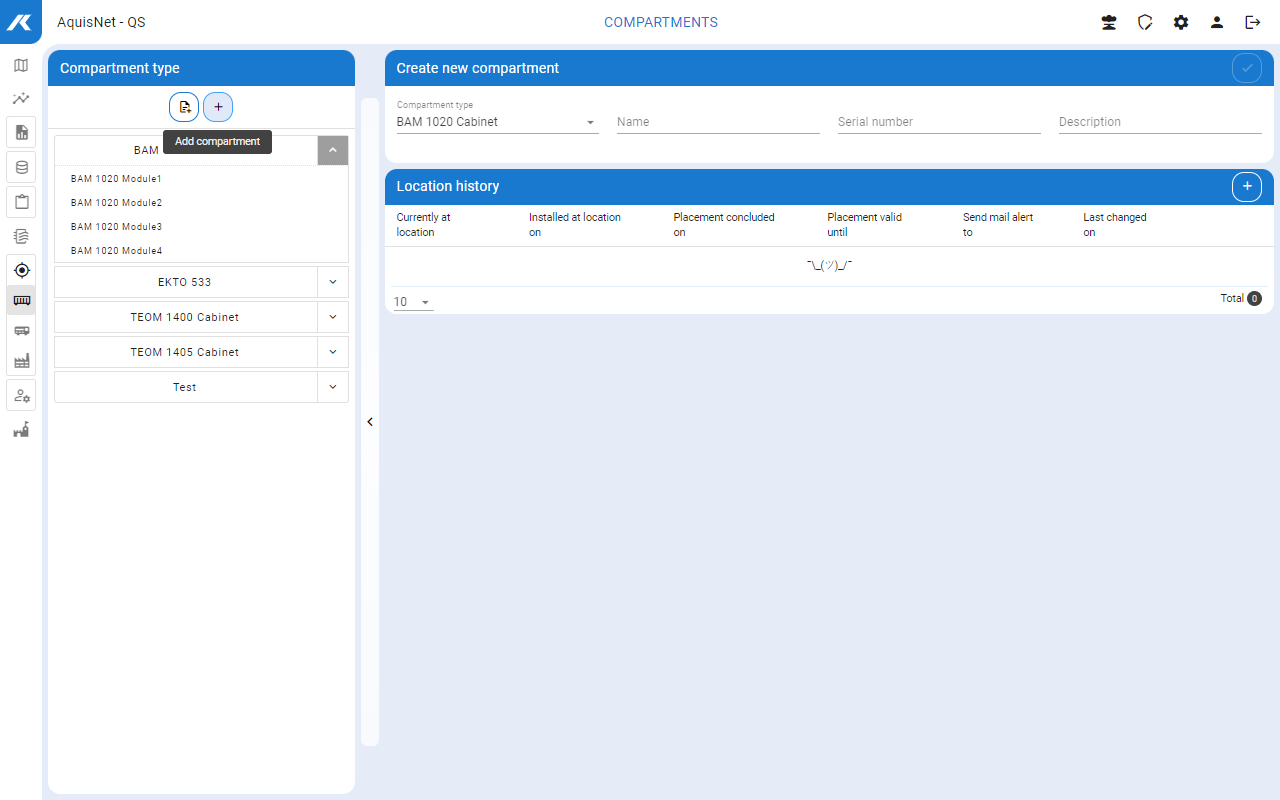

The dialog for entering the data for the new compartment opens. Mandatory fields are highlighted in red.

In this dialog you have the following working possibilities:

▪Confirm your new compartment with .

The new compartment is saved in the system and displayed in the tree view.

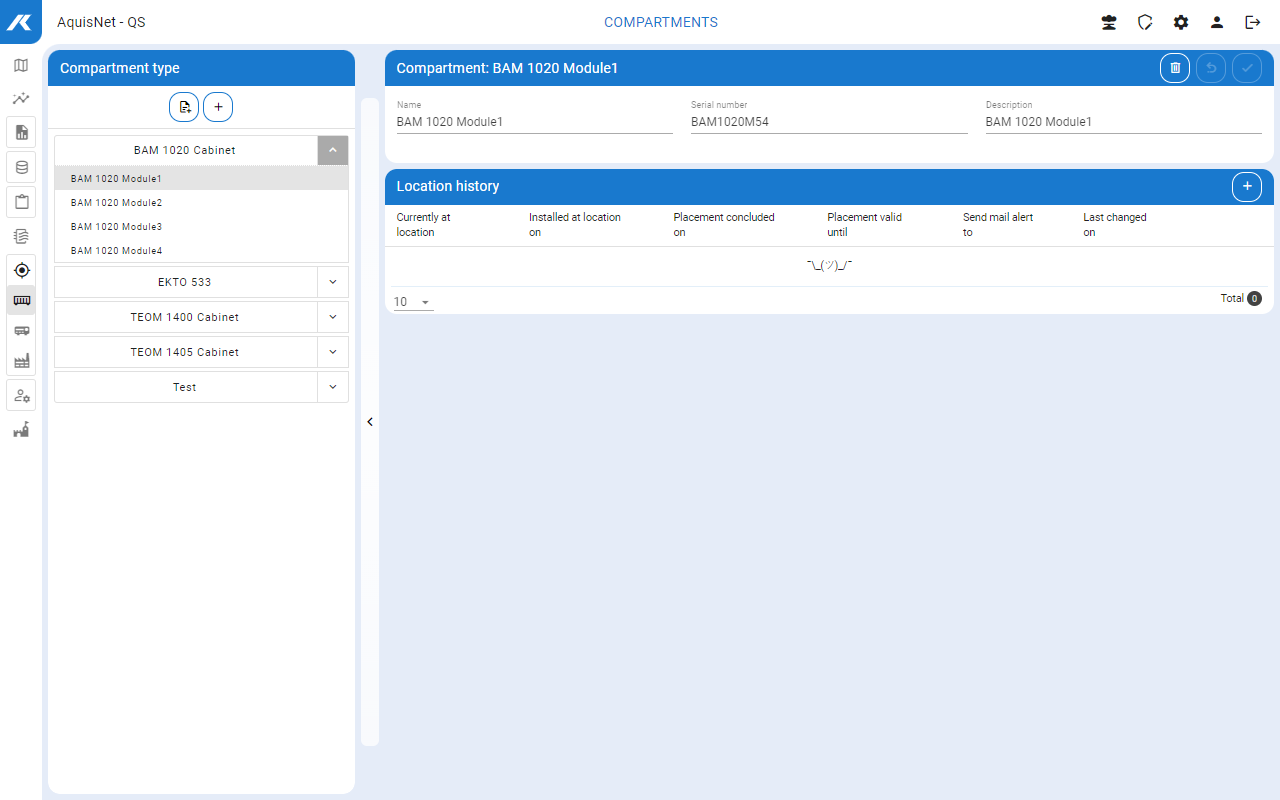

▪Select the desired compartment in the left bar with the compartments types and compartments.

You can edit the data set in the right-hand section of the window.

In this dialog, you have the same working possibilities as when creating a new one.

Here you can also:

Note: The properties changed here are then automatically added to or removed from all compartments that are assigned to the current compartment type!

When creating or editing a compartment, you can specify details of the location.

▪Select the desired compartment in the left bar.

▪Click on the plus in the Location history section.

▪Select in the Create new compartment placement dialog, select a station from the drop-down list box.

▪Edit the boxes Installed at location on, Placement valid until, Placement concluded on using the calendar function.

▪Fill in the box Send mail alert to so that someone can be notified.

After saving, the entry is displayed in the Location history section.

▪You can use the pencil icon () to edit location entries and delete entries ().

Note: The entries Currently at location, Installed at location on, Placement valid until and Send mail alert to depend on the location history. The last valid entry (placement has started but has not yet been completed (the date in the box is either in the future or the box is not filled) is shown in the view of the compartment (see above).

▪Confirm your new or changed locations with .

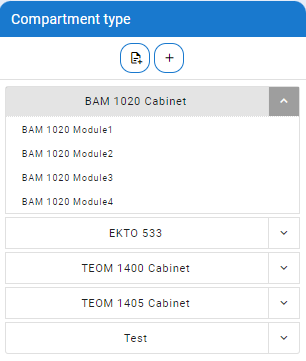

▪Select the desired compartment in the left bar.

▪Delete it with .

The compartment is deleted from the system after confirmation of the system message. The entry in the tree view is removed.
