Details on the plausibility check of a time series as well as the call-up of a plausibility checker for the post-processing of time series measured values can be called up via the context menu for import time series in the browser tree. This function is not available for time series generated by origins.

To call plausibility information on time series,

▪expand the tree view (independent of the browser tree configuration) to the time series level.

▪double-click the desired time series:

▪If the time series cannot be extended with regard to an origin entry or a plausibility checker, it is an import time series for which no plausibility checker has been created.

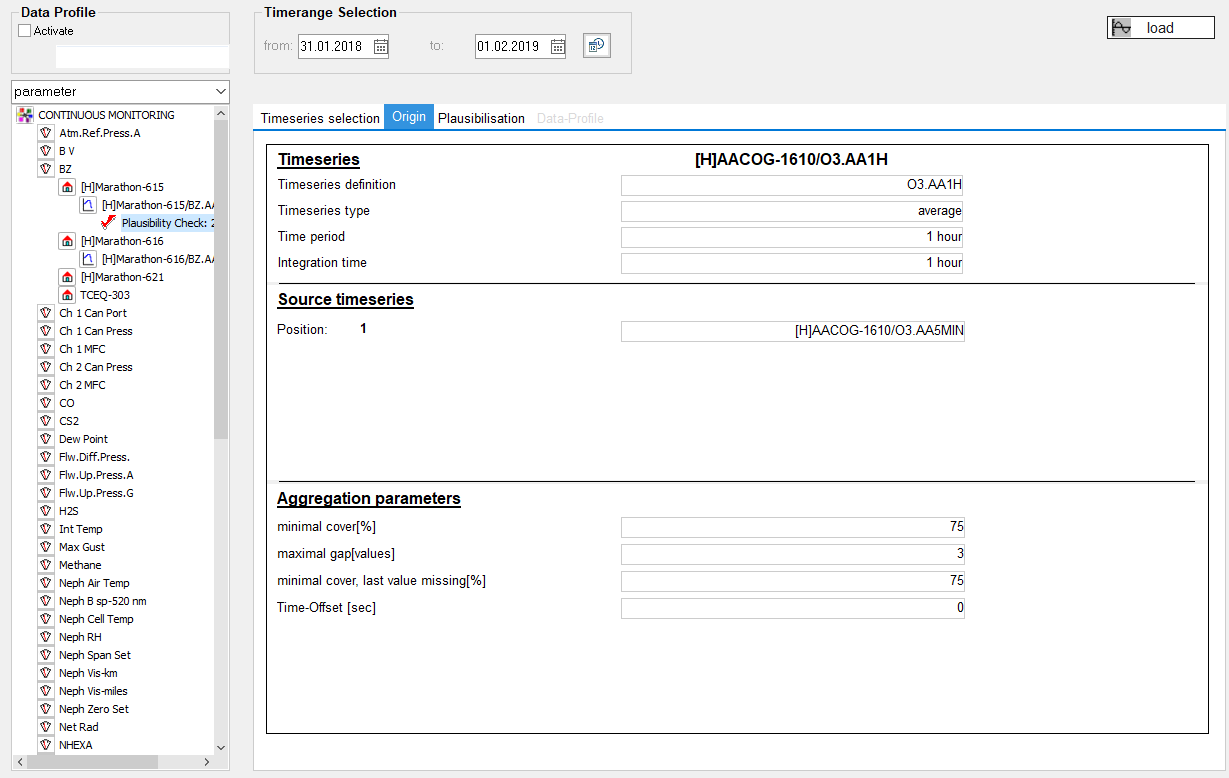

▪The Origin entry tells you that it is a time series generated by an origin. The plausibility check function is not available for time series generated by emergence:

▪If the time series can be extended with regard to a plausibility check entry, the tree entry contains the type of plausibility check used.

If you find several (but no more than five) plausibility types under the time series, a red arrow points to the type whose parameters are displayed in the right-hand part of the dialog.

▪A mouse click on a plausibility type displays the stored details of the time series in the main window.

In the plausibility parameters section (in the right part of the dialog), the parameters of a type are displayed.

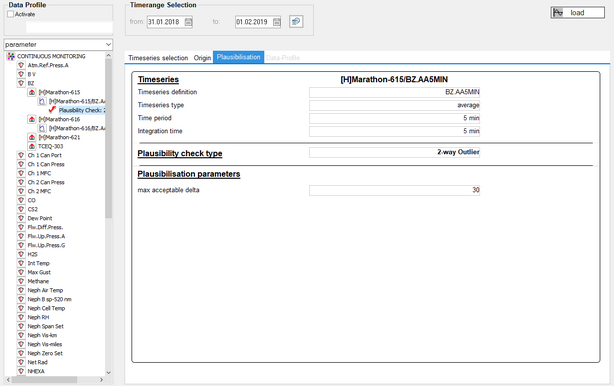

▪By double-clicking on the plausibility check entry, the stored details are displayed in the main window:
