AquisNet DMO

Create new plausibility check

Scroll PDF |

Since you can only assign each plausibility type to an import time series once, the maximum possible number of plausibility checks in a time series is equal to the number of plausibility types. This function is not available for time series generated by origins.

To assign a new or further plausibility check to an import time series,

select the corresponding time series by mouse click.

Open the context menu with the right mouse button and

Select the Create new plausibility check function.

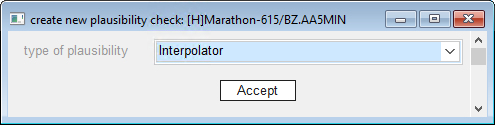

The New plausibility check dialog opens:

aquis.dmo_zrbplausibilisierung.neu

Select a new plausibility check from the drop-down list box.

A plausibility type that has already been defined is no longer available for selection in the list.

Now confirm your selection by clicking the [Accept] button to further determine the plausibility type.

The possible parameters are explained at the beginning.

Confirm your entries with [OK].

The new plausibility type has been created in the system and you now get back to the time series browser.

Documented software version: 4.6.2
