Plausibilised values are displayed in the graphical display by means of a control bar (see ch. The control bar). Marks on this bar indicate the time stamp of the plausibilised value.

In the tabular representation, the column Remarks informs about a plausibility check. The plausibility check type used by the system for the corresponding value of the import time series is listed.

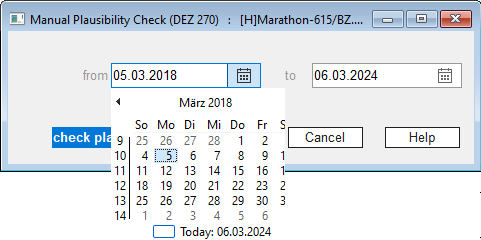

Manual plausibility check

AquisNet allows you to check plausibility manually. For example, you can subsequently check old data that entered the AquisNet system without plausibility checks for implausibility.

▪Specify a time range by selecting a lower time limit (from) and an upper time limit (to) using the calendar functions.

▪Confirm with [Calculate].

The calculation is performed and communicated via system message.
