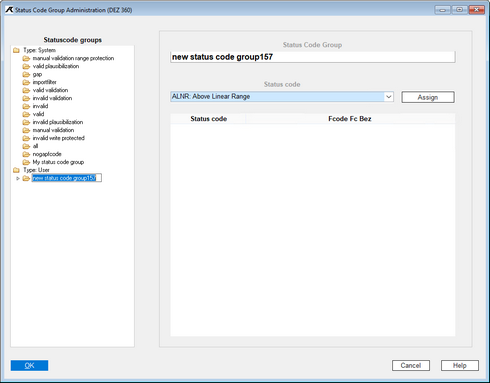

To create a new error code group,

▪click any entry in the tree view on the left.

▪Open the context menu with the right mouse button.

▪Select the Create new error code group function in the context menu.

AquisNet now creates a new error code group and an entry in the tree view. This entry is given a default name.

▪You can change the name suggested by the system in the tree view.

▪To do this, click it once with the mouse pointer.

After a short moment, the input field is activated.

▪Now enter the new name via keyboard and confirm with [Return].

The changed name of the error code group is also shown at the top right of the dialog.

With the next user action, the system displays a control dialog for saving the changes.

▪Confirm it with [Yes].
