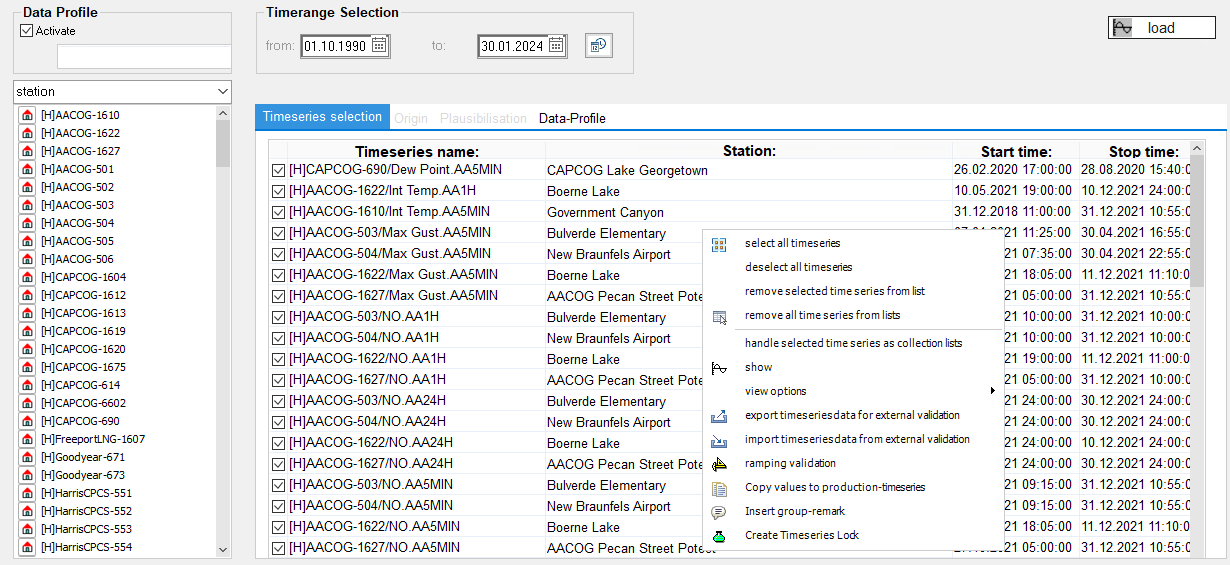

The time series selection window lists the time series that are selected to be displayed in the graph or table, for example. The two columns Values from and Values to provide an overview of the existing data in the time series.

aquis.dmo.zrdarstellen.zrbrowserbaumansicht.zrauswahl.aufbau_zoom50

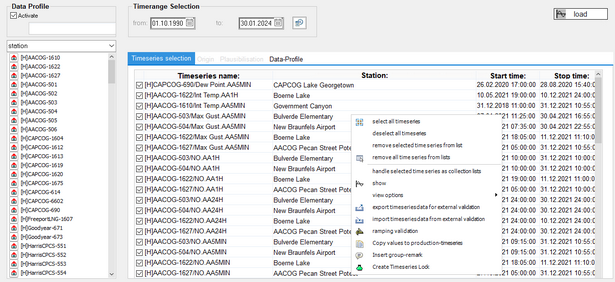

In the time series selection, after activating the right mouse button, you get the above-mentioned context menu.

Select all time series

With this option you can select all time series.

Deselect all time series

With this option you can deselect all time series. The time series remain in the selection list.

Remove selected time series from list

With this option you can remove all selected time series from the time series selection.

Remove all time series from list

With this option you remove all time series from the time series selection.

Handle selected time series as collection lists

Please refer to the section Creating new collection list.

Default view

Activate this button to open the graph and table display similar to the [View] button in the time series browser.

Insert collective remark

This allows you to insert a common remark for all selected time series. Common here means that an identically worded remark is inserted for each of these time series. However, a subsequent change must be made separately for each of these remarks.

Documented software version: 4.6.2
